Pitched

Pitched Rooflight

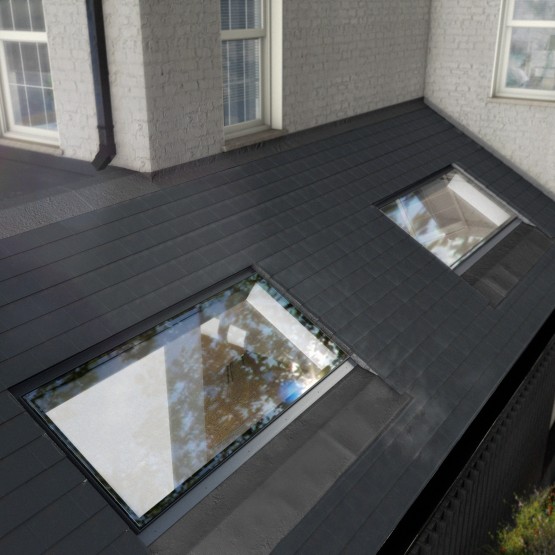

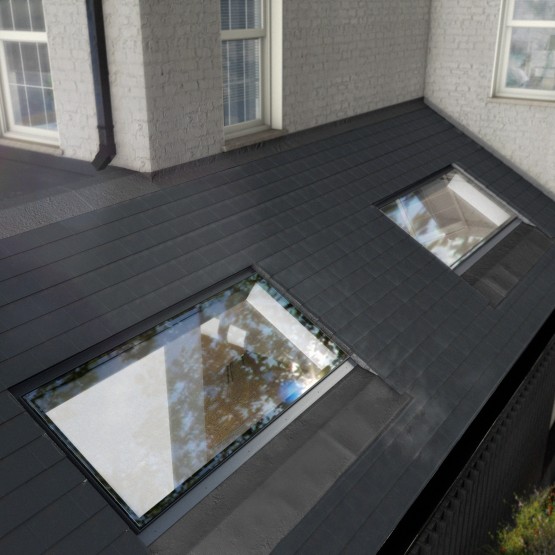

The Pitchglaze is a CE marked roof window designed to be installed in pitched tiled roof applications flush (in plane) with the tiling line.

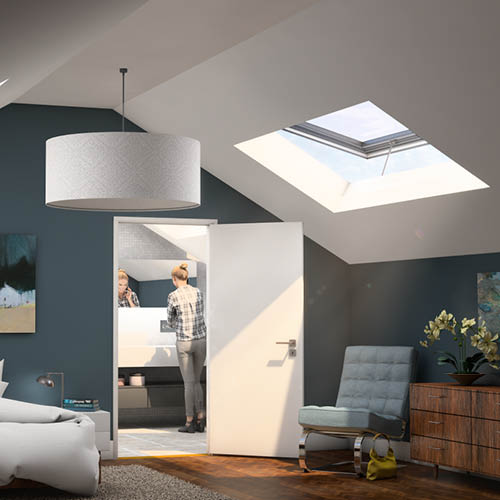

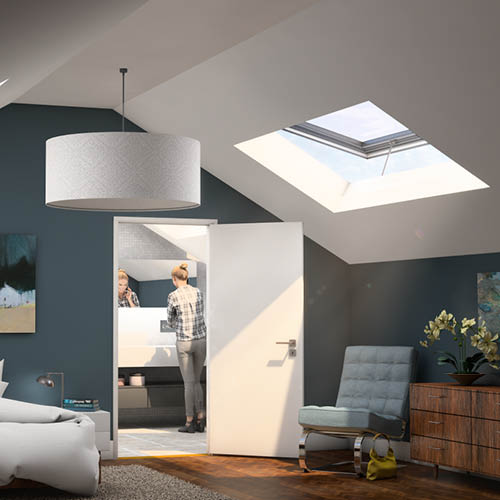

Glazing Vision have adopted their pioneering ‘frameless’ design ethos with this product so that when installed the building occupants can enjoy sky only views from the roof window, something not usually found with traditional roof window products.

The Pitchglaze is designed to be used in roof pitches between 15° and 60° and comprises of Qualicoat approved polyester powder coated aluminium framework combined with either double or triple glazing.

The glass specification is high performance thermally efficient low emissivity (low e) coated glass which has been heat soak tested for additional safety. Based on the current design, aperture sizes of up to 3 meters squared are achievable.

The Pitchglaze has been designed so that all fixings are accessible from the outside, which means that the roof window can be installed to existing buildings with minimal disruption to internal finishes.

Typical Project

The Pitchglaze roof window is perfect for a wide variety of pitched roof projects which will vary from smaller domestic builds which will benefit from the additional daylight that larger units can provide to high end residential which may combine several units installed adjacent to one another creating entire glazed ceilings as an architectural feature.

Technical Details

Product data sheets

CAD drawing references

Operation and maintenance manuals
